Description
Blower Unit 3-Phase 400 V 4.6 / 6.3 kW 1.2187.3.0C / 1.2188.3.0C / 1.2187.6.80

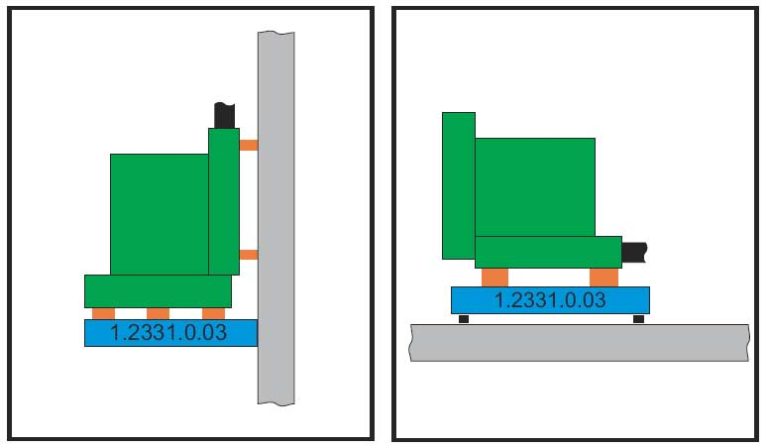

Installation
- At wall, at ceiling, or at bottom
- Motor axis can be horizontal or vertical
Dimensions
- Size: 487mm (h) x 466mm (w) x 498mm (d)
Motor
- IE2
- Connection to 3×400V, up to 60 Hz
Accessories
- Blower installation set for air tube Do110 1.2187.6.80 with screws and shock absorbers
- Wall mounting plate 1.2331.0.03
| Art # | f [Hz] | Voltage | Power [kW] | maxP [hPas] | Vol [m3/h] | Noise [db (A)] | weight [kg] |
| 1.2187.3.0C | 50 | 3x 400V | 4.0 | 340 | 510 | 73 | 117 |
| 60 | 3x 400V | 4.6 | 400 | 600 | 73 | 117 | |
| 1.2188.3.0C | 50 | 3x 400V | 5.5 | 370 | 510 | 73 | 126 |
| 60 | 3x 400V | 6.3 | 440 | 600 | 73 | 126 |
| Tube | Length | Pay Load | speed 4.0 kW @50Hz |
speed 4.6 kW @60Hz |
speed 5.5 kW @50Hz |
speed 6.3 kW @60Hz |
| Do | [m] | [kg] | [m/s] | [m/s] | [m/s] | [m/s] |
| 110 | 200 | 3 | 7.0 | 8.4 | 9.6 | 11.6 |
| 110 | 500 | 15 | 6.4 | 7.7 | 8.8 | 10.6 |
| 160 | 200 | 3 | 7.1 | 8.5 | 9.8 | 11.7 |
| 160 | 200 | 5 | 7.0 | 8.4 | 9.6 | 11.6 |
| 160 | 500 | 15 | 6.1 | 7.3 | 8.4 | 10.1 |
| 160 | 1000 | 3 | 6.0 | 7.2 | 8.3 | 9.9 |
