Description
Blower Unit 1.2184.3.0C
Characteristics
- Side channel blower with 1.5 kW at 50 Hz or 1.75 kW at 60 Hz
- Maximum volume and pressure see table

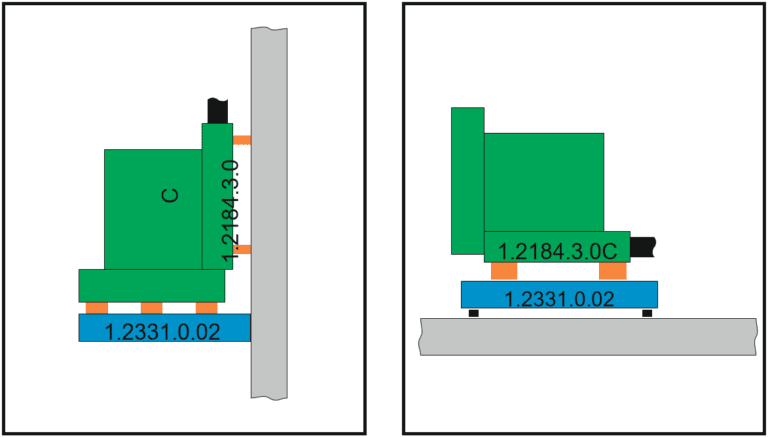

Installation
- At wall, at ceiling, or at bottom
- Motor axis can be horizontal or vertical
Accessories
- Blower connection set 1.2184.6.80
- Two blower connection set 1.2322.6.20
- Wall mounting plate 1.2331.0.02
| Art # | f [Hz] |
Voltage | Power [kW] |
max P [kPas] |
Vol [l / min] |
height [mm] |
width [mm] |
depth [mm] |
weight [kg] |
dB (A) |
| 1.2184.3.0C | 50 | 380 – 440 | 1.5 | 20 | 3600 | 345 | 333 | 323 | 23.5 | 72 |
| 60 | 380 – 440 | 1.75 | 20 | 4200 | 345 | 333 | 323 | 23.5 | 72 |
| 2184 | ||||||
| Tube | Length | Pay Load | Freq | Speed | Freq | Speed |
| Do | [m] | [kg] | [Hz] | [m/s] | [Hz] | [m/s] |
| 110 | 200 | 3 | 50 | 5.2 | 60 | 6.2 |
| 110 | 500 | 9 | 50 | 3.1 | 60 | 3.7 |
| 160 | 200 | 3 | 50 | 2.7 | 60 | 3.2 |
| 160 | 200 | 9 | 50 | 2.4 | 60 | 2.9 |
| 160 | 500 | 15 | 50 | 1.9 | 60 | 2.3 |
| 160 | 1000 | 3 | 50 | 1.9 | 60 | 2.3 |
